Boeing's "Visibility Factor" Equation

(Revised April 2024)

Reference:

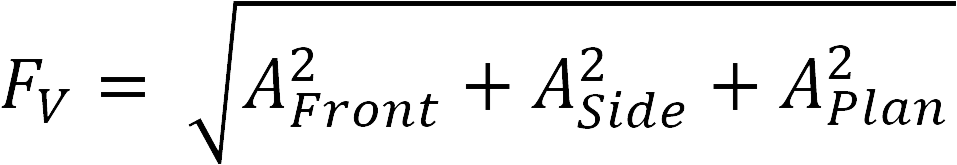

Boeing Report on Microfighters (JPG of Formula)

Where:

FV: = Visibility Factor.
AFront: = Frontal Area.
ASide: = Side Area.
APlan: = Wing Planform Area

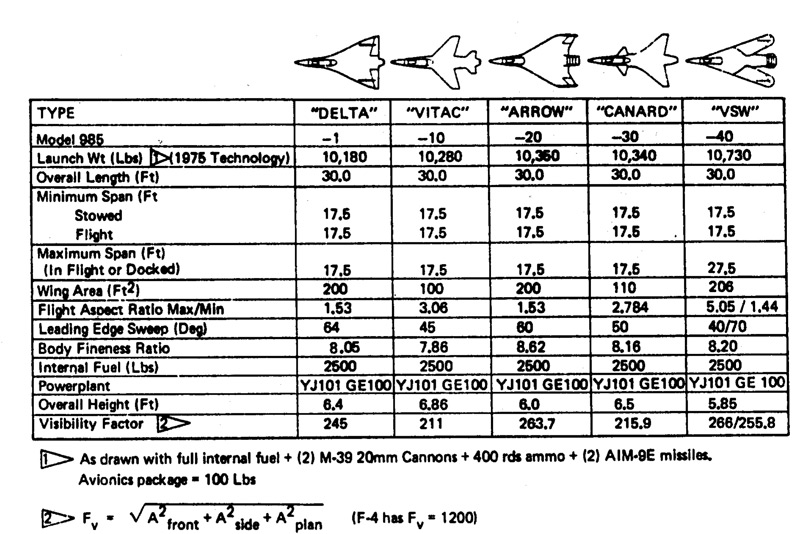

For reference, a F-4 Phantom according to Boeing's document has a FV of 1,200.

Pre-Built Calculator

Frontal Area
Side Area
Wing Planform Area

Visibility Factor
